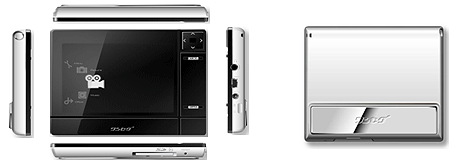

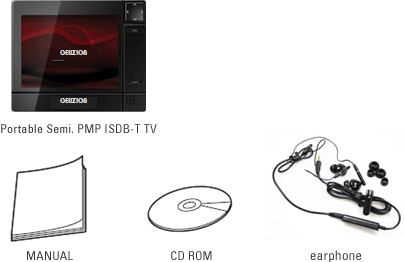

SS-100은 Portable ISDB-T Semi. PMP Mobile TV단말기로써 휴대하고 다니면서 ISDB-T Digital Mobile TV 방송(Japan, Brazil, Peru, Argentina, Chile 등 South America향)을 수신할 수 있으며, MP3 Music, MP4/AVI/WMV9 동영상, JPEG 사진등을 Play 할 수 있는 Semi. PMP ISDB-T TV 휴대형 방송 수신기 입니다.
항목 설명
Mobile TV 규격 ISDB-T one-seg

RF Modulation

QPSK(1/2, 2/3), 16QAM(1/2)
Band/Channels UHF/14~69 ch
RF Sensibility
-102 dBm/one-seg
Max. Level Input -3 dBm
Display
3.5” TFT LCD, QVGA(320X240 pixel), 262K Colors
Dimension/Weight
109(W) X 83(H) X 11.5(T)mm/90g
AV output
Speaker and earphone

Resolution

320 X 240
Scan Picture 720 X 480

Playing Time

1-seg(6 Hours), Video(7 Hours), Audio(12 Hours: Speaker)
Charging Time
1,250 mAh Li-POLYMER Battery
Ext. Interface
Mini-USB, SD Card Slot
Operating Temp. -20℃~65℃
Formats for compression AUDIO : MP3, WMA, OGG, WAV
VIDEO : AVI, WMV9, JPEG(Image)
